  • AUTO-LOCK
  • FOR BOTH RIGHT- and LEFT- HANDED USERS

ES-1/green

Auto-Lock-featured standard-duty model with a pocket clip/blade snapper. For both right- and left-handed uses. Handle and all plastic parts made from 100% recycled materials. Easy disassembly for next recycling. The ES-1 is a Japanese Eco-marked product authorized by JEA, and conforms to the Japanese law on promoting green purchasing.

Product information

Product NameES-1/green
PackingBlister Packed
Accessories

FEATURE

Environment-Friendly Compact Cutter


The handle and clip are made of 100% recycled plastic.
Body: 100% recycled ABS
Pocket clip: 100% recycled polyacetal
Blade slide: Polyacetal

Separatable for Disposal


Each part can be disassembled for separate disposal.Remove the clip, then remove the slider and blade, and separate them according to the procedure below.
*Please be very careful when removing the parts.

【Body】

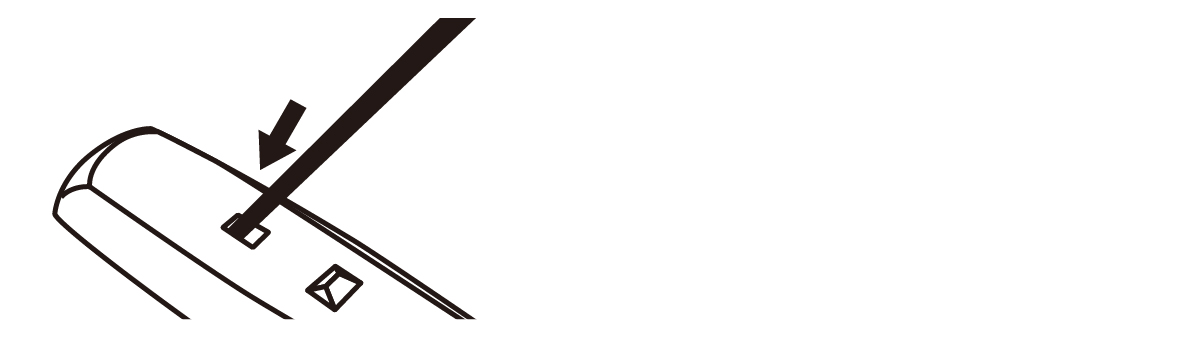

Push the shaft stopper through the hole on the back side of the main unit with a thin rod.


Insert a thin rod into the shaft hole on the front side of the main unit and pull it out.

【Slider】

Push in the convex part of the spring with a thin rod and remove the spring.

For both left- and right-handed users


The blade can be reversed for left-handed use.

Auto-Lock


The auto-locking system locks the blade firmly with a single touch.

How to replace blade

With the blade fully retracted, pull out the clip while pressing down the [A] part. Push blade slide to the rear of handle, remove it, and then insert a new blade.
